CCS4 Realtime Option

Problems:

• Breakpoints are not active when they are set while the CPU is running
• GEL-file input is not asserted while the CPU is running

Solution:

Open "Generic Debugger Options"

    back to top

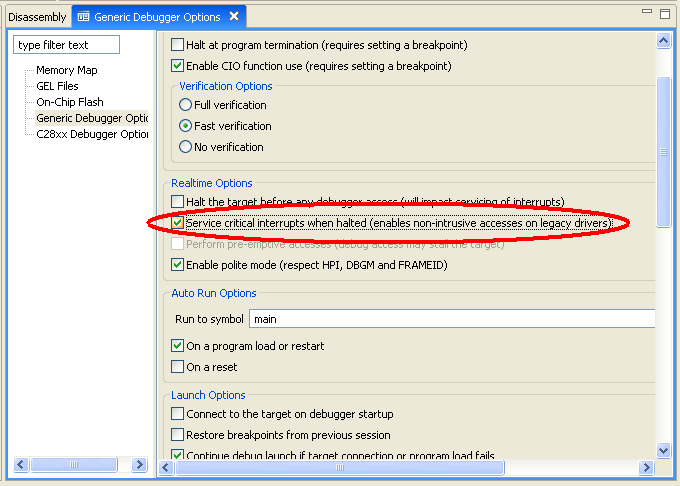

Activate "Service critical interrupts when halted (enables non-intrusive accesses on legacy drivers)"

In some older releases this option was “Enable silicon real-time mode (service critical interrupts when halted, allow debugger accesses while running)”.

Then select “Yes” if a dialog box pops up asking if you want to allow real-time switching.
