1 Problems:

  • Breakpoints are not active when they are set while the CPU is running

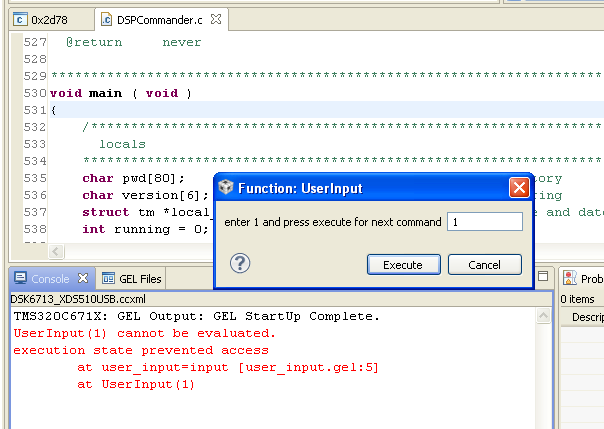

  • GEL-file input is not asserted while the CPU is running

Ccs5 gel input error.png

2 Solution:

Open "Generic Debugger Options"

Ccs4 debugger options.png

Arr u.png    back to top

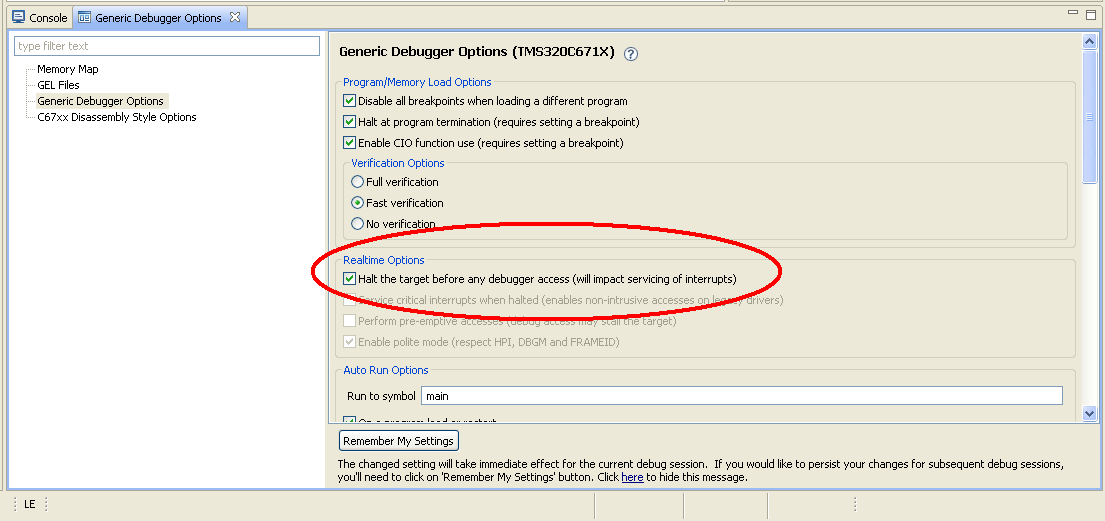

Activate "Halt the target before any debugger acess(will impact servicing interrupts)"

In some older releases this option was “Enable silicon real-time mode (service critical interrupts when halted, allow debugger accesses while running)”.

Ccs5 realtime mode.png

Then select “Remember My Settings” or “Yes” if a dialog box pops up asking if you want to allow real-time switching.
